OPALE IVOTECH TRC 150 CORELESS-CARTON
SEALING TAPES
OPALE slitter and rewinder does not use cores and builds it by itself
during the working cycle. Once the cycle is completed the slitter
ejects the finished roll automatically and send it to the packaging
system.
OPALE has a compact design compared to the today solutions since
has not core loading
OPALE TRC 150 CORELESS-CARTON SEALING TAPES

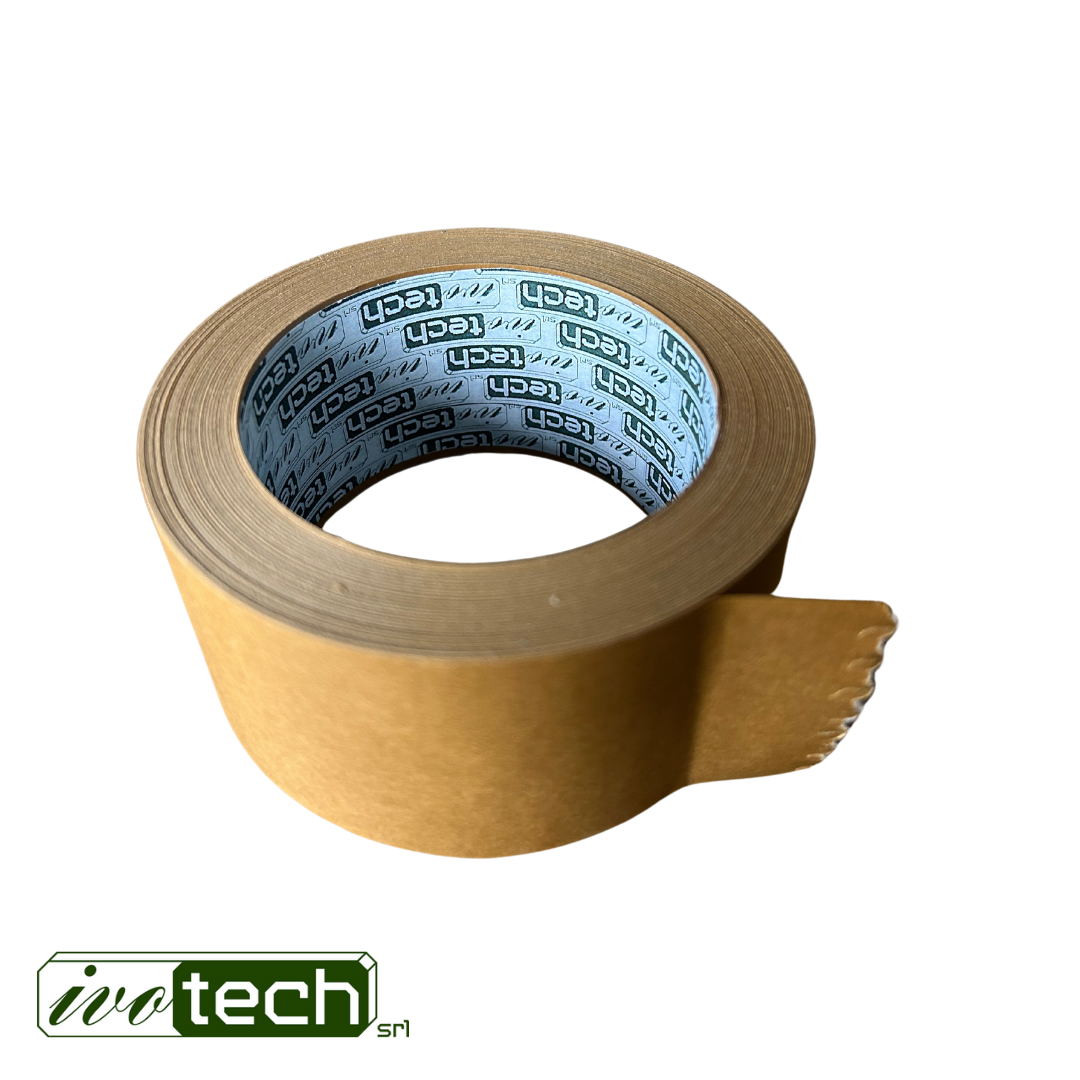

new core-less tape
today tape with core
OPALE TRC 150 ADVANTAGES
PRODUCT
PRODUCTION
Tapes cost reduction ⟹ no core
Eco friendly ⟹ less paper (trees)
Transportation cost reduction
with easy collapse tapes ⟹ more rolls in a box
End user doesn’t have to disposal
the core
Storage core saving cost ⟹ no need space for core storage , no dust for core cutting
No problem with humidity change and sizing of core.
Possibility to use OPALE in line with adesive tape coating line
Avoid start and stop due to core feeder
Possibility to slit two different size of tape on the same moment
OPALE IVOTECH TRC 150 IN LINE PROCESS WITH COATING LINE
Possibility to reach a width up to 3.000 mm
OPALE has been designed to be installed in line or off line with the coating machine
Possibility to install OPALE core less in line on existing adhesive coating line.
In-line design doesn’t need further process with production cost reduction
In-line design avoid high noise pollution during rewinding process.
OPALE IVOTECH TRC 150 main characteristics
- Working width: up to 3000 mm.
- Cycle for 66 meter roll aprox 20 sec
- Min. slitting width: 38 mm up to 100 mm
- Max. rewound diameter: 150 mm.
- Finished rolls and logs inside diameter: 3” (other diameters upon request)
- Slitting systems: pneumatic pressure blades and knives
- Mechanical speed up to 400 m./min.
- Automatic finish roll unloading
OPALE IVOTECH TRC 150 saving, eco friendly numbers
Typical slitter & rewinding machine for tape | 30.000.000 | peace/year |
Core price | 0,025 | euro/core |
Total annual core cost | 750.000 € | plus core storage, less dust and humidity |
Core weight | 20 | GSM |
Total board for core used in a year | 600 | Tons/ year |
Annual trees saving | 14.400 | 24 tree for each tons of board |
CO2 production | 326 | Kg of C02 x tons of board |
Saving of CO2 | 195.600 | tons/year |
Coreless transportation | Less 50% | |
Core disposal | none |
